Geometry
Theory
Question and Answer
Questions

Answers

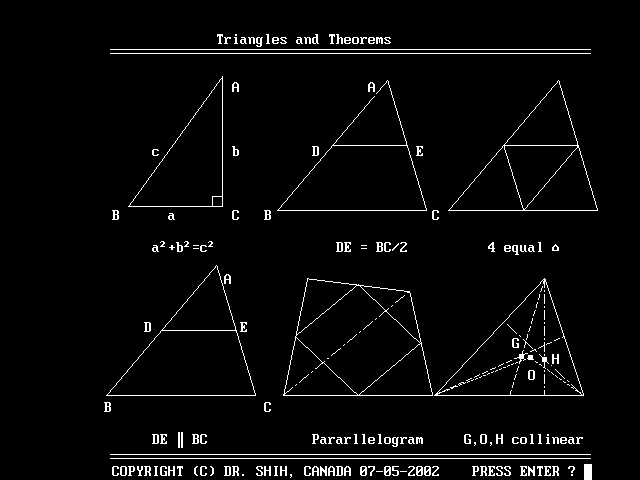

Q01. Diagrams

Top left diagram
  • Pythagorean Law : c^2 = a^2 + b^2
  • Proof : see MD2002 13 09
Top mid diagram
  • Mid point theory of triangle.
  • D is mid point on AB and E is mid point on AC.
  • Then DE = BC/2
Top right diagram
  • Example : Application of mid point theory.
  • Join the mid points of traingle will give 4 triables.
  • These four triangles are congruent.
Bottom left diagram
  • Mid point theory of triangle.
  • D is mid point of AB and E is mid point of AC.
  • Then DE is parallel to BC.
Bottom mid diagram
  • Example : Application of mid point theory.
  • Join the 4 mid points of quadrilateral will give a parallelogram.
Bottom right diagram
  • Let G be the gravity center of a triangle.
  • Let O be the ex-center of a triangle.
  • Let H be the orthocenter center of a triangle.
  • Then GOH will be colinear and HO = 2*OG (OG : HO = 1 : 2)
Go to Begin

Q02. Bisector theory
Bisector of line AB.
  • If PD is a bisector of line AB and D is on line AB.
  • Then PD is perpendicular to AB.
  • Then PA = PB and DA = DB.
Bisector of an angle.
  • Angle BAC. Point A is the common point. AB and AC are the rays.
  • If PA is the bisector of angle BAC.
  • Then angle PAC = angle PAB.
  • Then point P to ray AB = point P to ray AC.
  • Point P to ray AB is the line perpendicular to AB.
Go to Begin

Q03. Mid point theory of triangle
  • Construction
    • Draw triangle ABC.
    • Let D be mid point of AB.
    • Draw line DE parallel to BC.
  • Statement
    • Prove that E is the mid point of AC.
  • Hint
    • Make BDPC as parallelogram.
    • Prove that triangle ADE is congruent to triangle CEP.
  • Proof
    • Draw CP parallel to AB.
    • Produce DE to P.
    • Since CP parallel to BD and HP parallel to BC (By construction).
    • Hence BDPC is a parallelogram.
    • Hence DAC = PCE (alternate angles equal).
    • Angle CEP = angle AED (vertical angle equal).
    • CP = BD = DA. Hence triangle ADE is congruent to triangle CEP.
    • Hence AE = CE and E is the mid point of AC.
Go to Begin

Q04. Mid point theory of triangle
  • Construction
    • Draw triangle ABC.
    • Let D be mid point of AB. Let E be the mid point of AC
  • Statement
    • Prove that DE = BC/2.
  • Hint
    • Since D and E are mid-points, hence DE is parallel to BC.
    • Make BDPC as parallelogram.
    • Prove that triangle ADE is congruent to triangle CEP.
  • Proof
    • Produce DE to P and let DE = EP.
    • Join CP.
    • Since AE = EC and DE = EP, hence ADCP is a parallolgram.
    • Since DAC = PCE (alternate angles equal).
    • Angle CEP = angle AED (vertical angle equal) and AE = EC.
    • Hence triangle ADE is congruent to triangle CEP.
    • Hence DE = DP/2 and DE parallel to BC.
Go to Begin

Q05. Join the mid points of quadrilateral will give a parallelogram.
Construction
  • Draw a quadrilateral ABCD.
  • Let the mid points be E on AB, F on BC, G on CD and H on DA.
Statement
  • Prove that EFGH is a parallelogram.
Proof
  • Draw line AC.
  • In triangle ABC, EF = AC/2 and EF parallel to AC.
  • In triangle ADC, GH = AC/2 and EF parallel to AC.
  • Hence EFGH is a parallelogram.
Go to Begin

Q06. Join the mid poins of a triangle will give 4 congruent triangles

Construction
  • Draw a triangle ABC.
  • Let the mid points be D on AB, E on BC and F on CD.
Statement
  • Prove that the four triangles are congruent.
Proof
  • DF = CE and DE = FC. EF is common side. Hence triangle DEF congruent to CEF.
  • EF = BD and FD = BE. DC is common side. Hence triangle DEF congruent to BDE.
  • EF = AD and DE = AF. DF is common side. Hence triangle DEF congruent to ADF.
Go to Begin

Q07. Answer
 Go to Begin

Q08. Answer
 Go to Begin

Q09. Answer
 Go to Begin

Q10. Answer
 Go to Begin
